How to test an NTC thermistor with a multimeter

Nov 19, 2026

How to Test an NTC Thermistor With a Multimeter

Set the meter to ohms, disconnect at least one lead of the thermistor, and measure at room temperature. A healthy NTC reads close to its rated R25.

Then warm it and watch the reading fall, or chill it and watch the reading rise. An open circuit, a near short, or a reading that does not move with temperature means the part has failed.

That answers the question. What follows is how to know what "close to R25" should be for your specific part, why a room-temperature check passes a drifted sensor, and when a measurement taken without unsoldering can be trusted.

Published 5 September 2026. Updated 19 November 2026.

Before you probe anything

Kill the power and let the equipment sit. Resistance measurement injects the meter's own small current, so a live circuit gives a meaningless reading and can damage the meter.

Watch for stored energy. Power supplies, motor drives and anything with a large bulk capacitor hold a charge after the mains is disconnected. Wait for the discharge indication the equipment provides, or check across the bus with the meter on volts before switching to ohms.

Note the ambient temperature. Every judgement below is relative to the temperature the thermistor is actually at, not to the number printed on the datasheet.

You need a digital multimeter with an ohms range, a way to change the part's temperature by a controlled amount, and the part's R25 and B value. A cup of iced water and a thermometer beats a hot air gun for this, because you know what temperature the part reaches.

The procedure

  1. Isolate the thermistor. Unplug the connector, or unsolder one leg. Anything in parallel is measured together with the sensor and will drag the reading down.
  2. Measure at room temperature. Set the meter to a range above the expected value, touch the probes to the two leads, and let the reading settle. Polarity does not matter. Record the value and the room temperature.
  3. Compare against the part's rated R25. A 10 kΩ part at 25 °C reads near 10 kΩ. At 20 °C the same part reads around 12.6 kΩ, so a few degrees of room-temperature difference is not a fault. The next section gives the ratios.
  4. Change the temperature and watch the reading move. Put the tip in iced water, or hold it between finger and thumb. Resistance must fall as it warms and rise as it cools, smoothly and within a few seconds for a bare bead.
  5. Let it return. Bring the part back to ambient and confirm the reading comes back to where it started. A part that does not return has a thermal or moisture problem even if both individual readings looked reasonable.

What "correct" actually looks like

"The resistance should change" is not enough to judge a part, because the amount it should change is set by the B value.

For a 10 kΩ thermistor with B25/85 = 3988, the Beta equation gives these ratios against its own 25 °C value. Terminology, test methods and the generic requirements for these devices are defined in IEC 60539-1:2022.

Check point Temperature Resistance Ratio to R25
Iced water 0 °C 34.0 kΩ 3.40 ×
Cool room 20 °C 12.6 kΩ 1.26 ×
Rated point 25 °C 10.0 kΩ 1.00 ×
Held in the hand 35 °C 6.5 kΩ 0.65 ×
Warm water 50 °C 3.6 kΩ 0.36 ×
Boiling water 100 °C 680 Ω 0.068 ×

Calculated from the Beta equation with R25 = 10 kΩ and B = 3988 K.

The ratios are not universal, because they follow B. Iced water gives roughly 2.9 × for a B3435 part, 3.4 × for B3988, and 3.7 × for B4300.

So a part that only doubles in iced water is suspect whatever its B value, while the difference between 3.4 and 3.7 tells you nothing without knowing which part you are holding.

Two things follow. Multiply rather than subtract when you sanity check a reading, since the ratio holds for any R25 with the same B. And if you do not know the B value, the iced-water test still tells you the part is alive and responding, just not whether it is accurate.

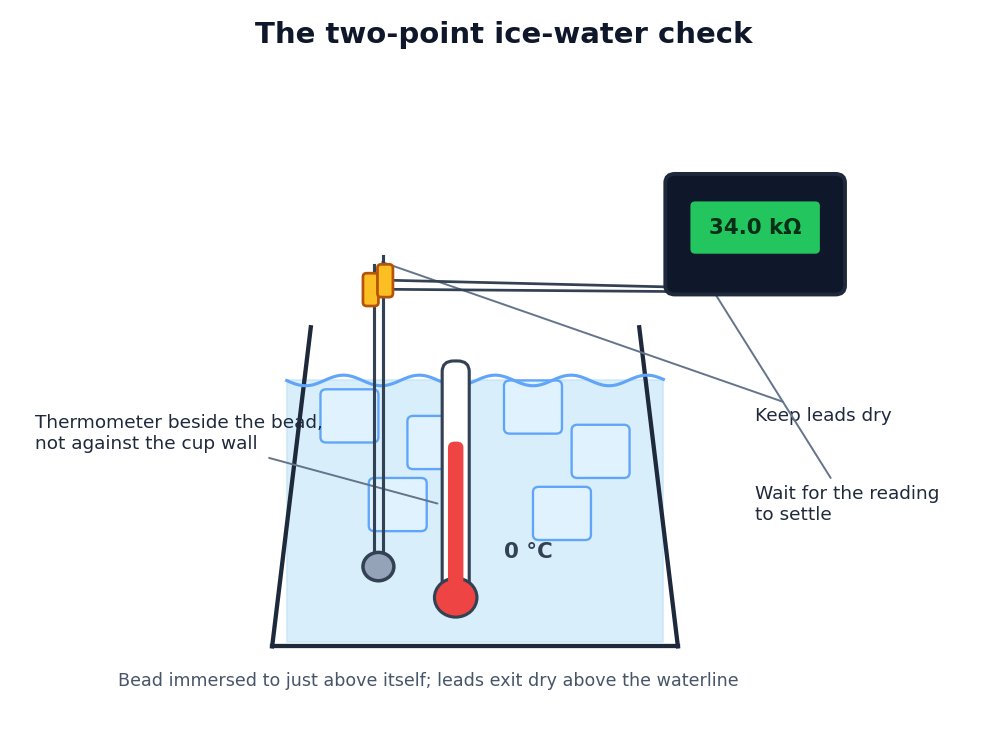

Labelled diagram of an NTC thermistor bead in iced water with a thermometer alongside and multimeter probes clipped to the dry leads above the waterline
The two-point check. The ice bath fixes the reference at 0 °C, which a hot air gun cannot do.

What each reading means

A meter reading falls into one of nine patterns, and each points somewhere different.

Reading What it means What to do
Near rated R25 at the measured ambient, moves correctly with temperature Healthy No action
Open circuit or overrange Cracked bead or broken lead Replace. Measure again at the sensor body to confirm the break is not in the cable
Near zero ohms Short between conductors, often moisture in a connector or a crushed cable Inspect and dry the connector. If the reading stays low with the sensor fully isolated, replace
Plausible value, no change when heated or cooled Not a working thermistor. Either failed, or it is a fixed resistor Confirm the part number before replacing
Resistance rises when heated It is a PTC, not an NTC Use the PTC procedure instead
Correct cold, wrong hot, or the reverse Drift, or a wrong assumed B value Two-point check, below
Correct but slow to respond Thermal contact problem, not an electrical fault Check mounting, thermal compound, immersion depth
Jumps or flickers while probing Intermittent connection in the lead or crimp Flex the cable while watching the meter. Reterminate
Reads high by a consistent small amount Contact resistance at the probes or a long test lead Null the meter leads, or subtract the leads' own resistance

That last row matters more on low-resistance parts. Half an ohm of test-lead resistance is 0.005% of a 10 kΩ reading and can be ignored. The same half ohm is 0.07% of the 680 Ω this part reads at 100 °C, and 0.74% of the 68 Ω that a 1 kΩ part with the same B value reads there.

Null your leads before measuring anything under a few hundred ohms.

The two-point check, and why one point is not enough

A thermistor that has drifted still reads a plausible resistance. It passes continuity, it responds to heat, and at room temperature it can look perfect.

The reason is the same one that hides a wrong B value: deviation is smallest at the reference point and grows with distance from it.

A 1% B error produces zero error at 25 °C and roughly 0.9 °C at 100 °C. Ageing behaves similarly. A single measurement near ambient is taken at exactly the temperature where the fault is least visible.

So take two points. Measure at ambient, then at a second temperature near the part's working range, and check both against the ratio table. Iced water is the practical second point because it is repeatable and free.

Refrigeration service guidance makes the same split. A Heatcraft field support engineer, writing in ACHR News, describes the room-temperature and ice-bath readings as a check that the part works, and comparing them against the maker's resistance chart as the separate step that shows whether it is accurate (ACHR News, 2009).

If the working range is high, boiling water gives you a second fixed point, with the caveat that it varies with altitude.

A part that is right at one point and wrong at the other has drifted or is not the part you think it is. A part that is wrong at both by the same proportion is more likely the wrong value entirely.

A sensor can pass a room-temperature check and still be wrong by tens of degrees at working temperature. A hot-end thermistor in that state runs the heater well below its setpoint, and nothing on the display looks broken. Only a comparison against a second instrument, such as a K-type thermocouple held against the hot end, shows it.

Why NTCs drift, and how mounting affects response, is covered in the NTC thermistor guide.

Testing in circuit

You can sometimes measure without unsoldering, and you need to know when the answer is trustworthy.

The problem is parallel paths. Any resistor, semiconductor junction or filter capacitor across the thermistor is measured with it, and the result is always lower than the true value. A 10 kΩ thermistor across a 10 kΩ divider resistor reads 5 kΩ, and nothing about that reading looks obviously wrong.

Unplugging a connector is usually enough, and it is quicker than desoldering. If the part is soldered down, lifting one leg breaks every parallel path at once.

An in-circuit reading is still useful for a rough go or no-go check. If the reading is a plausible fraction of the rated value and moves the right way with temperature, the sensor is probably alive.

Do not use an in-circuit number to judge accuracy, and do not conclude a part is out of tolerance without isolating it first.

Capacitance across the sensor also makes the reading creep upward for several seconds before settling. Wait for a stable number rather than reading the first value.

Does this procedure apply to your part?

The procedure above covers two-terminal NTC thermistors, which is what most temperature sensors in appliances, vehicles, battery packs and HVAC equipment are. If resistance rises with heat, the part is a PTC and the pass criteria are different.

Motor protection PTCs in particular have a low, flat cold resistance and only change sharply within a few degrees of their rated switching temperature, so ordinary bench heating may never reach the transition. That procedure is in how to test a PTC thermistor with a multimeter.

If the part is unmarked and you do not know which you have, how to identify NTC and PTC thermistors is the place to start.

A replacement has to match the original's R25 and curve, not just be "an NTC". Fit a sensor with a much higher R25 than the controller expects and the display drops far below the real temperature: a reading below freezing on a tank that is hot to the touch means the controller is seeing far more resistance than its curve allows. Check R25 and the B value on the old part's label or data sheet before ordering.

If the assembly has three or more wires, it is probably two sensors in one housing, or a sensor with a shield. Measure each pair in turn and expect one pair to read open.

If the part is a platinum RTD rather than a thermistor, resistance rises with temperature and moves by well under one percent per degree, so it looks almost fixed on a meter compared with an NTC. The resistance temperature detector guide covers those. To check one on the bench, see how to test a PT100 with a multimeter.

Signs a thermistor has gone bad

Most thermistors are suspected because of what the equipment does, before anyone picks up a meter. An NTC's resistance falls as it warms, so an open circuit looks like extreme cold to the controller and a short looks like extreme heat. That makes the symptom a useful pointer to which check to run first.

What the equipment shows Likely failure Check first
A temperature far below anything possible, or a sensor-open fault code Open circuit: cracked element, broken lead, unseated connector Open circuit row in the reading table
A temperature far above anything possible, or a sensor-short fault code Short between conductors, often moisture Near zero ohms row
Readings that jump, spike or drop out Intermittent lead, crimp or crushed cable Flex test below
Plausible readings that are off by a steady amount, worse far from room temperature Drift, wrong curve or wrong replacement part Two-point check
Correct readings that lag behind real changes Thermal contact, not the element Mounting and compound
A fault that clears when the sensor is tapped or warmed, then returns Cracked body or moisture inside the sensor Replace, then fix the seal or drip path

The table maps each symptom to the meter patterns above. It is our summary, not a manufacturer's fault code list; check the equipment manual for what its own codes mean.

Look and flex before you measure

A quick inspection catches several of these faults before any reading is taken.

  • The body. Look for cracks in the epoxy or glass, swelling, or a split or dented probe sheath.
  • Pins and pads. Green or white corrosion on connector pins or solder pads adds resistance and lets moisture in.
  • The cable near the sensor. Darkened, stiff or flattened insulation usually marks heat damage or a crushed conductor.
  • The mounting. A sensor that has come loose from its surface or slid out of its hole reads air.
  • Flex while watching the meter. With the meter connected, gently move the leads where they leave the sensor body and where they enter the connector. The reading should not jump, and nothing should move where the leads enter the body.

What these faults look like in practice

  • Moisture in a cracked sensor. A coil thermistor in an air handler reads a few hundred ohms where tens of kilohms are expected at room temperature, and tapping or flexing it sometimes brings the reading back. That pattern points to hairline cracks in the coating that let condensate in. Replace the sensor and mount the new one where condensate cannot collect around it.
  • A crushed wire, not a dead bead. The reported hot-end temperature climbs to an impossible value while the hot end is only warm to the touch. Before replacing the sensor, check the lead where it passes under screws and clamps, because a wire crushed by an over-tightened screw gives the same reading.
  • A new part can be the bad part. A new hot-end thermistor that reports several hundred degrees while the hot end sits at room temperature is faulty out of the box. Test a replacement before fitting it.

When the thermistor tests good and the fault stays

A sensor that passes every check above is telling you the fault is elsewhere. Check the wiring for an intermittent crimp by flexing the harness while watching the meter.

An outside-temperature display on a car is a typical case. It reads far below freezing on a mild day, and a new sender does not cure it. The fault is in the short loom to the sensor, where the conductors have corroded dark inside the sheath. Repairing the wire and replacing the connector pins restores a correct reading.

Two quick ways to split sensor from controller. Swap two sensors of the same type at the controller and see whether the bad reading follows the sensor. On a pool controller, for example, swap the air and solar sensor inputs: if the erratic reading moves with the solar sensor, that sensor or its cable is at fault. Or connect a fixed resistor in place of the sensor, a method the ACHR News article above also gives: a 10 kΩ resistor on an input set for a 10 kΩ curve should display close to 25 °C.

Check the controller's input configuration, since many accept several sensor curves and the wrong selection produces a wrong temperature from a perfectly good part.

And check the mechanical mounting, because a sensor that has come loose from its surface reads air rather than the thing it is supposed to be measuring. Replacement probes and elements are in the NTC thermistor category.

What this guide does not assert

The resistance values and ratios are calculated from the Beta equation, using the stated R25 and B value. They show the shape of a correct response and are not a datasheet for any specific part.

Check readings against the curve data for the part in front of you, and treat the ratios as a sanity check rather than a tolerance limit.

This page does not give a pass or fail tolerance band, because that depends on the part's own R25 and B tolerance, on how accurately you know the temperature at the moment of measurement, and on your meter's accuracy on the range in use.

A KTY silicon sensor is checked differently: it is polarised, its 1 kΩ figure belongs to 100 °C rather than 25 °C, and the decisive reading is taken above 200 °C. See how to test a KTY84-130 with a multimeter. A two-lead NTC or ceramic PTC thermistor, by contrast, has no polarity; see our thermistor wiring guide.

Identifying which 10k curve a part follows takes two readings away from 25 °C, because every 10k NTC reads 10 kΩ there. The values to compare against are in the 10k thermistor chart.
